5"D x 1"H

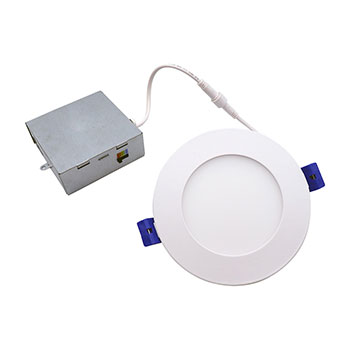

Dimmable 120V 4" LED 5CCT IC Rated Air Tight Slim Round Panel Light - in White Finish, FT6 Wires






Specifications
Model No.
RL-RP209WH5C
Category1
-
Category2
-
Collection
-
Finish
White
Glass/Shade
White Acrylic Lens
Fixture Material
Alum & Acrylic Lens
Diameter
5"D
Length
-
Width
-
Height
1"H
Extension
-
Overal Height
-
Arm Length
-
Lamp Quantity
-
Lamp Wattage
9W
Lamp Type
LED Module
Power Factor
>0.9
Color Temperature
27/30/35/40/50K
Lamp included
Included
Dimming
Dimmable-TRIAC
Total Lumens
900 lumens
Delivered lumens
650/700/740/740/700 lumens
CRI
80
Dimmer List
Leviton DSL06-1LZ, IPL06-10Z, Lutron MCL-OP153M, DVCL-153P, CTCL-153P, DV-600P, S-600, CT-600P
Remark
LED Life 50,000 Hours
Location
Wet (Covered Ceiling Mount Only)
ENERGY STAR
No
Fluorescent
No
Safety Listings
CSA or Equivalent
UPC
775379085285
Box Code 39
RL-RP209WH5C/24
I 2 of 5
-
GTIN
-
SKU
-
Glass Length
-
Glass Width
-
Glass Diameter
3.1875"D
Glass Height
-
Glass Extension
-
Unit Box Length
5.31"L
Unit Box Width
5.31"W
Unit Box Height
2.56"H
Unit Net Weight
0.66 lbs
Unit Gross Weight
0.8 lbs
Unit Cu. ft
0.042
Master Pack
24
Master Box Length
16.5"L
Master Box Width
11.25"W
Master Box Height
11.25"H
Master Gross Weight
19.03 lbs
Master Cu. ft
1.208
